We use derivatives everywhere in physics, for example:
In classical mechanics, the velocity of a single particle is:
\boldsymbol{v} = \frac{d\boldsymbol{r}}{dt}
where \boldsymbol{r} is the position of the particle in a given reference frame.
In classical electromagnetism, the equation connecting the electric field \boldsymbol{E} with the vector potential \boldsymbol{A} and scalar potential \phi is:
\boldsymbol{E} = -\nabla \phi - \frac{\partial A}{\partial t}.
The Lagrangian density for the vibrations of a continuous rod can be expressed as
\mathcal{L} = \frac{1}{2}\left[\frac{1}{c^2}
\left(\frac{\partial \varphi}{\partial t}\right)^2
-\left(\frac{\partial \varphi}{\partial x}\right)^2\right].
Here c is the velocity of longitudinal elastic waves. The dynamical variable is \varphi(x,t). As you can see, the spatial and temporal derivatives of this quantity together make up the Lagrangian density.
1.2 The Problem to be Solved
Generally, our task is to evaluate the derivative of f(x) at a specific point, f'(x).
If f'(x) can be evaluated analytically, then this problem is trivial.
However, in lots of cases, either f(x) has a very complicated expression, or we only know the numerical values of f(x) at a few points, namely, we have a table of the form (x_i, f(x_i)) for i = 0, 1, \dots, n-1.
We could approach this problem in a number of ways:
We can use interpolation or data fitting to produce a new function that approximates the data reasonably well, and then apply analytical differentiation to that function. This is helpful for noisy data. On the other hand, the approxixmation may not be able to capture the derivatives.
The second approach is the finite-difference approach, also known as numerical dfferentiation. This makes use of the Taylor series expansion.
The third approach is the automatic differentiation: this is as accurate as analytical differentiation, but it deals with numbers instead of mathematical expression.
2 Analytical Differentiation
Derivatives are defined as
\frac{d f(x)}{dx} = \lim_{h \to 0} \frac{f(x + h) - f(x)}{h}
You can calculate the analytical expressions by hand, based on the chain rulles etc. Alternatively, you can also use a computer algebra system (CAS). There are commercial softwares: Mathematica and Maple. There are also free options. One such example is Sage, which is a mathematical software system with a “Python-like” syntax. In one of the problems, we focus on a much more lightweight solution, namely SymPy (actually included as part of Sage): this is a Python module (that can be used like any other Python module) to carry out symbolic manipulations using Python idioms whenever possible.
3 Finite Differences
Let us rewrite the definition of the derivative
\left.\frac{d f(x)}{dx}\right|_{x=\tilde{x}} = \lim_{h \to 0} \frac{f(\tilde{x} + h) - f(\tilde{x})}{h}
where we are slightly changing our notation to show that this definition allows us to evaluate the derivative of f(x) at point \tilde{x}.
Numerically, one can apply this formula without taking the limit, but take h to be “small”. But there are many questions that emerge with this approach.
do we have any understanding of the errors ?
do we know what “small” means ?
do we realize that the smaller h becomes, the smaller the numerator becomes? Namely, as h becomes smaller and smaller, both numerator and denominator become smaller. Any errors appearing in the calculation of the numerator will then be magnified.
3.1 Noncentral-Difference Approximations
Forward Difference
Recall the Taylor expansion of f(x+h) around x:
f(x+h) = f(x) + h f'(x) + \frac{h^2}{2}f''(x) + \frac{h^3}{3!}f'''(x) + \cdots,
which can be re-arranged into
f'(x) = \frac{f(x+h) - f(x)}{h} - \frac{h}{2}f''(x) + \cdots.
This leads to
f'(x) =\frac{f(x+h) - f(x)}{h} + O(h),
known as the (first) forward-difference approximation, which has an error O(h). Graphically, this is just the slope of the line segment connecting f(x) and f(x+h), see left of Figure 1.

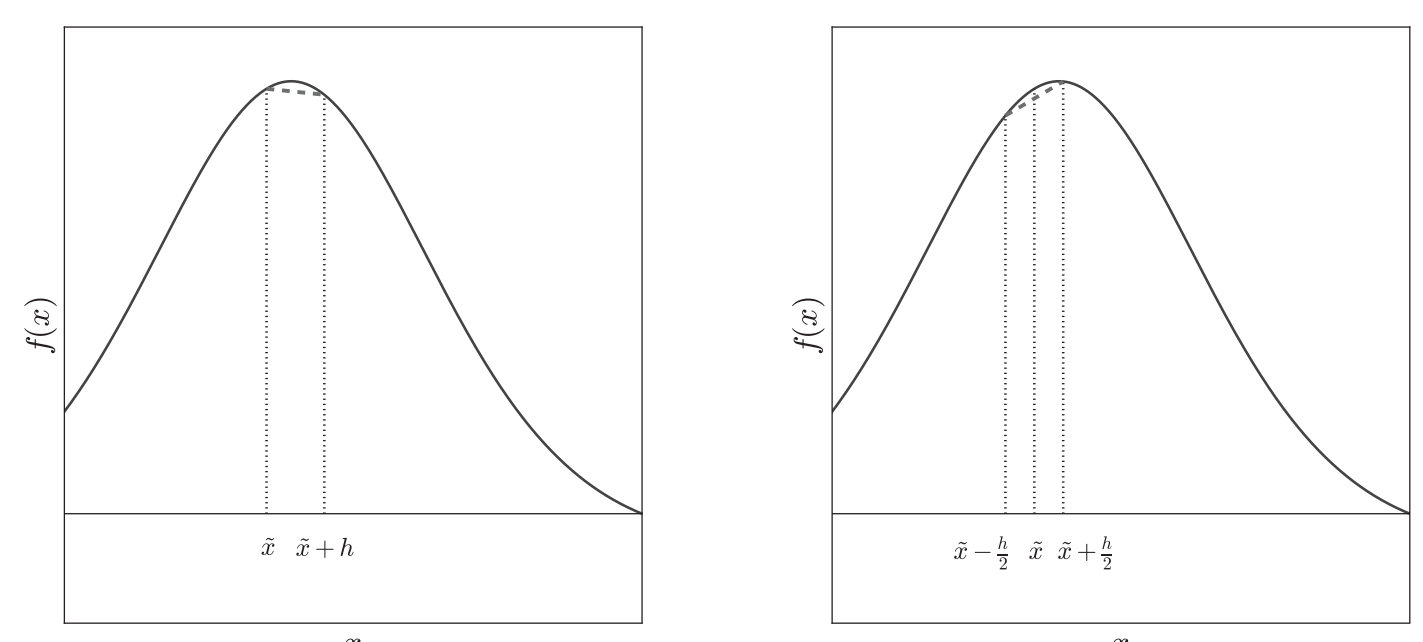

Figure 1: First approximation of a first derivative: forward (left), central (right)
Backward Difference
We can also perform a Taylor expansion of f(x-h) near f(x). This will lead to
f'(x) =\frac{f(x) - f(x-h)}{h} + O(h),
known as the (first) backward-difference approximation.
Error Analysis for the Forward Difference
There are two errors involved in this problem (we use \mathcal{E} to denote the magnitude of the absolute error):
the approximation error \mathcal{E}_{app}, coming from the truncation of the Taylor series.
the roundoff error \mathcal{E}_{ro}, coming from the subtraction and division involved in the definition of the forward difference.
Here, the approximation error is \mathcal{E}_{app} = \frac{h}{2} |f''(x)|.
Turning to \mathcal{E}_{ro}, where we are interested in computing [f(x+h)-f(x)]/h. We focus on the numerator: we are subtracting two numbers that are very close to each other. The absolute error for the numerator is f(x)2\epsilon_m, where we approximate f(x+h)\simeq f(x) and we assume the relative error for each function is the machine error \epsilon_m = 2.2 \times 10^{-16}. If we now ignore the error in the denominator, we can write
\mathcal{E}_{ro} = \frac{2|f(x)|\epsilon_m}{h}.
We can write the total absolute error
\mathcal{E} = \mathcal{E}_{app} + \mathcal{E}_{ro}
= \frac{h}{2}|f''(x)| + \frac{2|f(x)|\epsilon_m}{h}.
\tag{1}
We see that \mathcal{E}_{app} decreases as h is decreased. On the other hand, \mathcal{E}_{ro} increases as h is decreased.
To minimize the total error, take the derivative with respect to h and then set it to zero, we find
\frac{1}{2}|f''(x)| - \frac{2|f(x)|\epsilon_m}{h_{opt}^2} = 0.
This gives the optimal h = h_{opt}, with
h_{opt} = \sqrt{ 4\epsilon_m \left|\frac{f(x)}{f''(x)} \right| }.
\tag{2}
By Equation 1, we have that the optimal (minimum) error is
\mathcal{E}_{opt} = \frac{h_{opt}}{2}|f''(x)| + \frac{2|f(x)|\epsilon_m}{h_opt} =
h_{opt}|f''(x)|,
where in the second equality we have used Equation 2. This finally gives
\mathcal{E}_{opt} = \sqrt{4\epsilon_m|f(x) f''(x)|}.
For concreteness, assuming that f(x) and f''(x) are of order 1, we can obtain that h_{opt} = \sqrt{4\epsilon_m} \simeq 3 \times 10^{-8}, and \mathcal{E}_{opt} \simeq 3\times 10^{-8}.
Note that 10^{-8} error is not impressive. In analytical differentiation, the only error comes from function evaluation, which is a less important problem.
Another remark here is that the error analysis is on well behaved functions. The point of function evaluations should be away from singularties.
3.2 Central-Difference Approximation
Consider Taylor expansion of f(x\pm\frac{h}{2}):
f(x \pm \frac{h}{2}) = f(x) \pm \frac{h}{2}f'(x) + \frac{h^2}{8}f''(x) \pm
\frac{h^3}{48} f'''(x) + \cdots.
If we evaluate f(x+\frac{h}{2}) - f(x - \frac{h}{2}), we see that the f''(x) term get cancelled out. In fact, all even order of derivatives cancel out. Thus, we have
f'(x) = \frac{f(x + \frac{h}{2}) - f(x - \frac{h}{2})}{h} - \frac{h^2}{24}f'''(x)+ \cdots,
this leads to
f'(x) = \frac{f(x + \frac{h}{2}) - f(x - \frac{h}{2})}{h} + O(h^2),
known as the (first) central difference approximation. Note that the error is of second order of the small number h. This is graphically illustrated in Figure 1.
There exists one (very common in practice) situation where a central-difference approximation is simply not usable: : if we have a set of n discrete data points of the form (x_i, f(x_i)) for i = 0,1,\dots,n-1, we will not be able to use a central difference to approximate the derivative at x_0 or at x_{n-1}. So at the boundary points we have to use forward/backward difference method.
Error Analysis for the Central Difference
Similar to the error analysis in the forward case, the total error (see homework problem) here is
\mathcal{E} = \mathcal{E}_{app} + \mathcal{E}_{ro}
= \frac{h^2}{24}|f'''(x)| + \frac{2|f(x)|\epsilon_m}{h}.
You will also show that
h_{opt} = \left(24 \epsilon_m \left|\frac{f(x)}{f'''(x)}\right|\right)^{1/3},
and
\mathcal{E}_{opt} = \left(\frac{9}{8}\epsilon_m^2[f(x)]^2\left|f'''(x)\right|\right)^{1/3}.
Taking f(x) and f'''(x) of order 1, we can estimate h_{opt} \simeq 2 \times 10^{-5} and \mathcal{E}_{opt}\simeq 4 \times 10^{-11}. We see the improvements compared with the errors in forward difference.
3.3 Implementation
Let us work on a concrete function f(x) = e^{\sin(2x)}. We can analytically compute its derivative
f'(x) = 2\cos(2x)e^{\sin(2x)}.
The following program will compute the derivate of f(x) at x = 0.5, using finite difference.
from math import exp, sin, cos, log10def f(x):return exp(sin(2*x))def fprime(x):return2*exp(sin(2*x))*cos(2*x)def calc_fd(f,x,h): fd = (f(x+h) - f(x))/hreturn fddef calc_cd(f,x,h): cd = (f(x+h/2) - f(x-h/2))/hreturn cdif__name__=='__main__': x =0.5 an = fprime(x) hs = [10**(-i) for i inrange(1,12)] fds = [abs(calc_fd(f,x,h) - an) for h in hs] cds = [abs(calc_cd(f,x,h) - an) for h in hs] rowf ="{0:1.0e}{1:1.16f}{2:1.16f}"print("h abs. error in fd abs. error in cd")for h,fd,cd inzip(hs,fds,cds):print(rowf.format(h,fd,cd))

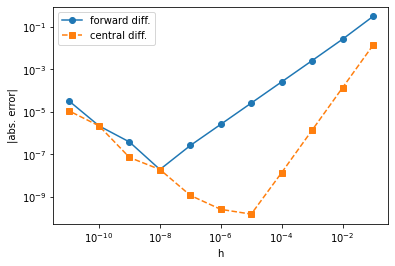

We can plot the error as a function of h, using matplotlib, with plt.loglog(x,y), which plots the data in the log-log scale.
import matplotlib.pyplot as pltplt.loglog(hs,fds,'o-',label='forward diff.')plt.loglog(hs,cds,'s--',label='central diff.')plt.xlabel('h')plt.ylabel('|abs. error|')plt.legend()plt.show()
3.4 More Accurate Finite Differences
In the previous section, we have derived the forward and central finite difference approximations, which require two function evaluations.
As you will show in your homework, one can produce the following approximation for the value of the derivative of f(x) at x:
f'(x) = \frac{4f(x+\frac{h}{2}) - f(x+h) - 3f(x)}{h} + \frac{h^2}{12}f'''(x) + \cdots
known as the second forward-difference approximation. This gives an error O(h^2), at the cost of requiring three function evaluations: f(x), f(x+h/2), and f(x+h).
You can also show that
f'(x) = \frac{27f(x+\frac{h}{2}) + f(x - \frac{3}{2}h) - 27 f(x-\frac{h}{2}) - f(x+\frac{3}{2}h)}{24h} + \frac{3}{640}h^4f^{(5)}(x) + \cdots,
known as the second central-difference approximation. This has an error of O(h^4), at the cost of requiring four function evaluations: f(x+3h/2), f(x+h/2), f(x-h/2) and f(x - 3h/2).
One observation is that the sum of coefficients in the finite-difference formula is zero: 27 + 1 - 27 -1 = 0 in the above case.
This can be generalized by incorporating more points in order to obtain a better approximation.
3.5 Second Derivative
Second order derivatives are also very important in physics. We can compute it numerically once we have first derivatives, via, for example
f''(x) = \frac{f'(x+\frac{h}{2}) - f'(x - \frac{h}{2})}{h} + O(h^2).
This can also be derived by adding f(x+h/2) and f(x - h/2),
f(x+h/2) + f(x - h/2) = 2f(x) + \frac{h^2}{4}f''(x) + \frac{h^4}{192}f^{(4)}(x)
+ \cdots .
This can be re-arranged into te form
\begin{align*}
f''(x) &= 4\frac{f(x + h/2) +f(x-h/2) - 2f(x)}{h^2} - \frac{h^2}{48}f^{(4)}(x) + \cdots \\
&=4\frac{f(x + h/2) +f(x-h/2) - 2f(x)}{h^2} + O(h^2),
\end{align*}
which is known as the (first) central-difference approximation to the second derivative.
Higher order of derivatives can also be derived in a similar fashion based on Taylor expansion, although this is not too common in physics.
3.6 Points on a Grid
So far, we have assume that we can evaluate the function at any points of x, in order to compute the derivatives. This does not happen sometimes in practice. Instead, in those cases we have access only to a set of n discrete data points, (x_i, f(x_i)) for i = 0,1,\dots, n-1.
Avoiding Error Creep
A very common use case is when the points x_i are on an equally spaced grid (also known as a mesh), from a to b. The n points are then given by the following relation:
x_i = a + ih,
where i = 0,\dots,n-1 and
h = \frac{b - a}{n-1}.
In python, you can store x_i into a list xs = [a + i*h for i in range(n)]. Note that range(n) automatically ensures that i goes from 0 to n-1.
Someone may think to take an alternative approach by considering a running x, and update x via x += h every time. This has a drawback because when every time you update x, you introduce an error in h and the error will accumulate, which can be a problem when you have thousands of points. This issue is known as “systematic creep”. Instead, if you update the x via x = a + i*h, you can avoid systematic creep because every time x is obtained by two operations: multiplication and addition.
Finite-Difference Formulas
Now let us calculate the first derivative of f(x) at the points x_i. To be concrete, we have 101 points from 0 to 5. This leads to a step size of h = 0.05: 0, 0.05, 0.1, 0.15, \dots, 5.0. For example, we are interested in f'(3.7) but the neighboring values at our disposal are only f(3.65), f(3.7), and f(3.75).
We can use the forward difference formula
f'(3.7) = \frac{f(3.75) - f(3.7)}{h} + O(h).
However, things are not so simple for the case of of central-difference formula, which requires f(3.675) and f(3.725).
What we can do instead, is to double h, by choosing h = 0.1, then we only need f(3.65), and f(3.75), with the modified formula
f'(x) = \frac{f(x+h) - f(x-h)}{2h} + O(h^2).
With this “doubling” trick, one can also compute the second order derivative via
f''(x) = \frac{f(x+h) + f(x - h) - 2f(x)}{h^2} + O(h^2).
The error for the first central-difference first derivative with h\to 2h is then
\mathcal{E} = \mathcal{E}_{app} + \mathcal{E}_{ro} = \frac{h^2}{6}|f'''(x)| +
\frac{|f(x)|\epsilon_m}{h}.
You can see that it still has an error O(h^2). It is safe to say central-difference is better than the forward-difference in most cases.
4 Homework
Show that total error of the central-difference for the first derivative is
\mathcal{E} = \mathcal{E}_{app} + \mathcal{E}_{ro}
= \frac{h^2}{24}|f'''(x)| + \frac{2|f(x)|\epsilon_m}{h}.
Please use the above results to show the optimal parameter is
h_{opt} = \left(24 \epsilon_m \left|\frac{f(x)}{f'''(x)}\right|\right)^{1/3},
which gives rise to the minimal error
\mathcal{E}_{opt} = \left(\frac{9}{8}\epsilon_m^2[f(x)]^2\left|f'''(x)\right|\right)^{1/3}.
Please derive the second forward-difference approximation
f'(x) = \frac{4f(x+\frac{h}{2}) - f(x+h) - 3f(x)}{h} + \frac{h^2}{12}f'''(x) + \cdots .
